无人驾驶之车辆检测与跟踪

悲与喜
关注TA
已关注
手记 6
粉丝 2
获赞 4

整个项目源码:GitHub
整个项目数据集:车辆数据集无车辆数据集

项目软件框架

下图是车辆检测的实现流程图:
这里写图片描述
具体内容如下:

  • 在有标签的训练数据集上进行Histogram of Oriented Gradients(HOG)特征提取

  • Normalize 这些特征,并随机化数据集

  • 训练线性SVM分类器

  • 实现一个滑动窗口技术,并使用训练好的分类器在图片中寻找车辆

  • 实现一个流处理机制,并通过一帧一帧地创建循环检测的热图来去除异常值及跟踪车辆

  • 为检测到的车辆估计一个边界框

Features

本项目,我们使用一些有标签的训练数据:汽车图片、无汽车图片,训练数据在all文件夹中可以找到
有汽车地图片标签为1,无汽车的图片标签为0
我们先读取数据,看下数据的分布

# import libsimport globimport matplotlib.image as mpimgimport numpy as npfrom skimage.feature import hogimport cv2import matplotlib.pyplot as pltfrom sklearn.svm import SVCfrom sklearn.preprocessing import StandardScalerfrom sklearn.model_selection import train_test_splitfrom sklearn.svm import LinearSVCimport timeimport pickle
SEED = 2018%matplotlib inline# Read dataset imagevehicle_images = glob.glob('all/vehicles/GTI*/*.png')
none_vehicle_images = glob.glob('all/non-vehicles/*/*.png')
cars = []
notcars = []for image in vehicle_images:
    cars.append(image)for image in none_vehicle_images:
    notcars.append(image)
print('Dataset size:Cars {} | NotCars {}'.format(len(cars),len(notcars)))
rate = len(cars)/len(notcars)*1.0if rate<2 and rate>0.5:
    print('DataSet is balance')else:
    print('DataSet is not balance')123456789101112131415161718192021222324252627282930
Dataset size:Cars 2826 | NotCars 8968
DataSet is not balance123

接下来我们分别随机选取一张有汽车及无汽车的图片

# random chooserand_car = np.random.choice(len(cars))
rand_notcar = np.random.choice(len(notcars))
this_car = mpimg.imread(cars[rand_car])
this_notcar = mpimg.imread(notcars[rand_notcar])

print('The size of car is {}'.format(len(this_car)))
print('The size of notcar is {}'.format(len(this_notcar)))
plt.figure(1)
plt.subplot(121)
plt.title('Car:class 1')
plt.imshow(this_car)
plt.subplot(122)
plt.title('Not a Car:class 0')
plt.imshow(this_notcar)
plt.show()12345678910111213141516
The size of car is 64
The size of notcar is 64123

png

HOG feature extraction

接下来,我们来提取Histogram of oriented Gradients(HOG)特征。
有关HOG特征相关的信息,大家可以参考:HOG
提取HOG特征的基本步骤如下:

  • 第一阶段为了减少图像亮度的影响需要对图片做一个全局的归一化。

  • 第二阶段计算图像的一阶导数,从而捕捉图像的轮廓及纹理信息。

  • 第三阶段旨在产生对局部图像内容敏感的编码(cell)

  • 第四阶段,归一化(block)

  • 最后将HOG descriptor 转化成分类器需要的特征向量

## def get_hog_features(img,orient,pix_per_cell,cell_per_block,vis=False,feature_vec=True):
    '''
    function:Extract HOG image and HOG features of a given image
    orient: number of bins for the orientation
    pix_per_cell: size of a cell
    cell_per_block: nber of cells per block
    vis(Boolean) :visualize the HOG image
    feature_vec(Boolean):return the features as a feature vector
    By default,the function uses transform_sqrt(apply power law compression to normalize the image before processing)
    '''
    if vis == True:
        features,hog_image = hog(img,orientations=orient,
                                pixels_per_cell=(pix_per_cell,pix_per_cell),
                                cells_per_block = (cell_per_block,cell_per_block),
                                transform_sqrt=True,
                                visualise=vis,feature_vector=feature_vec)        return features,hog_image    else:
        features = hog(img,orientations=orient,
                       pixels_per_cell=(pix_per_cell,pix_per_cell),
                      cells_per_block=(cell_per_block,cell_per_block),
                      transform_sqrt=True,
                      visualise=vis,feature_vector=feature_vec)        return featuresdef bin_spatial(img,size=(32,32)):
    '''
    Binned Color Feature
    img:original image
    size:target size of the image
    output:feature vector
    '''
    features = cv2.resize(img,size).ravel()    #print(cv2.resize(img,size).shape)(8,8,3)=>192
    return featuresdef color_hist(img,nbins=32,bins_range=(0,256)):
    '''
    Color histogram features for each channel of the original image
    img: original image
    nbins: number of bins of the histogram
    output:concatenate feature vector
    '''
    channel1_hist = np.histogram(img[:,:,0],bins=nbins,range=bins_range)
    channel2_hist = np.histogram(img[:,:,1],bins=nbins,range=bins_range)
    channel3_hist = np.histogram(img[:,:,2],bins=nbins,range=bins_range)    #Concatenate the histograms into a sigle feature vector
    hist_features = np.concatenate((channel1_hist[0],channel2_hist[0],channel3_hist[0]))#48
    #print(channel1_hist)
    # Return the individual histograms into a single feature vector
    return hist_featuresdef extract_features(imgs,color_space="RGB",spatial_size=(32,32),
                    hist_bins=32,orient=9,
                    pix_per_cell=8,cell_per_block=2,hog_channel=0,
                    spatial_feat=True,hist_feat=True,hog_feat=True,
                    hog_vis=False):
    '''
    Feature extractor:extract features from a list of images
    The function calls bin_spatial(),color_hist() and get_hog_features
    '''
    #create a list to append feature vectors to
    features = []    # Iterate through the list of images
    for file in imgs:
        file_features = []        # Read in each one by one
        image = mpimg.imread(file)        if hog_vis == False:
            image = image.astype(np.float32)/255
        # apply color conversion if other than 'RGB'
        # color conversion
        if color_space in ['HSV','LUV','HLS','YUV','YCrCb']:
            feature_image = cv2.cvtColor(image,eval('cv2.COLOR_RGB2'+color_space))        else: feature_image = np.copy(image)        # Image size: add all pixels of reduced image as vector
        if spatial_feat == True:
            spatial_features = bin_spatial(feature_image,size=spatial_size)            #print('spatial features shape:',spatial_features.shape)
            file_features.append(spatial_features)        # Histogram of reduced image: add histogram as a vector
        if hist_feat == True:
            hist_features = color_hist(feature_image,nbins=hist_bins)
            file_features.append(hist_features)        #HOG of reduced image: add HOG as feature vector
        if hog_feat == True:# Call get_hog_features() with vis=False ,feature_vec = True
            if hog_channel == 'ALL':
                hog_features = []                for channel in range(feature_image.shape[2]):                    if hog_vis:
                        hog_feature,hog_image = get_hog_features(feature_image[:,:,channel],
                                                                orient,pix_per_cell,cell_per_block,
                                                                vis=True,feature_vec=True)                        #print(cv2.cvtColor(image,cv2.COLOR_RGB2GRAY).dtype)
                        res = cv2.addWeighted(cv2.cvtColor(image,cv2.COLOR_RGB2GRAY),0.1,
                                              ((hog_image/np.max(hog_image))*255).astype(np.float32),0.1,0.0)                        # Plot the examples
                        fig = plt.figure()
                        plt.title(channel)
                        plt.subplot(131)
                        plt.imshow(image,cmap='gray')
                        plt.title('Original Image')
                        plt.subplot(132)
                        plt.imshow(hog_image,cmap='gray')
                        plt.title('HOG')
                        plt.subplot(133)
                        plt.imshow(res,cmap='gray')
                        plt.title('overlapped')
                        plt.show()                    else:
                        hog_feature = get_hog_features(feature_image[:,:,channel],
                                                      orient,pix_per_cell,cell_per_block,
                                                      vis=False,feature_vec=True)                    #print('hog feature shape:',hog_feature.shape)
                    hog_features.append(hog_feature)
                hog_features = np.ravel(hog_features)            else:
                hog_features = get_hog_features(feature_image[:,:,hog_channel],orient,
                                               pix_per_cell,cell_per_block,vis=False,feature_vec = True)            #Append the new feature vector to the features list
            #print('hog features shape:',hog_features.shape)
            file_features.append(hog_features)
        features.append(np.concatenate(file_features))        #print(np.concatenate(file_features).shape)
    # return list of feature vectors
    return features123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960616263646566676869707172737475767778798081828384858687888990919293949596979899100101102103104105106107108109110111112113114115116117118119120121122123124125126127

Settings for feature extraction

color_space = 'YCrCb'  # ['RGB','HSV','LUV','HLS','YUV',''YCrCb']orient = 12#HOG orientationspix_per_cell = 8#HOG pixels per cellcell_per_block = 2 #HOG cells per blockhog_channel = 'ALL'  # ['0','1','ALL']spatial_size = (8,8) #Spatial binning dimensionshist_bins = 16  #Number of histogram binshist_range = bins_range = (0,256)
spatial_feat = True #spatial featureshist_feat = False # histogram featureshog_feat = True # hog features1234567891011

Visualization of Hog Image

# randomly select examplerand_img = np.random.choice(np.arange(0,len(notcars),1))

print('Image adress:',notcars[rand_img])
feat = extract_features([notcars[rand_img]],color_space=color_space,
                        spatial_size=spatial_size,hist_bins=hist_bins,
                        orient=orient,pix_per_cell=pix_per_cell,
                        cell_per_block=cell_per_block,
                        hog_channel=hog_channel,spatial_feat=spatial_feat,
                        hist_feat=hist_feat,hog_feat=hog_feat,hog_vis=True
                       )1234567891011
Image adress: all/non-vehicles/GTI/image1686.png


/home/ora/anaconda3/envs/tensorflow/lib/python3.6/site-packages/skimage/feature/_hog.py:119: skimage_deprecation: Default value of `block_norm`==`L1` is deprecated and will be changed to `L2-Hys` in v0.15
  'be changed to `L2-Hys` in v0.15', skimage_deprecation)123456

png

png

png

Build Dataset with feature extraction

car_features = extract_features(cars,color_space=color_space,
                               spatial_size=spatial_size,hist_bins=hist_bins,orient=orient,
                                pix_per_cell=pix_per_cell,cell_per_block=cell_per_block,
                                hog_channel=hog_channel,spatial_feat=spatial_feat,
                                hist_feat=hist_feat,hog_feat=hog_feat)

notcar_features = extract_features(notcars,color_space=color_space,
                                  spatial_size=spatial_size,hist_bins=hist_bins,
                                  orient=orient,pix_per_cell=pix_per_cell,
                                  cell_per_block=cell_per_block,
                                  hog_channel=hog_channel,spatial_feat=spatial_feat,
                                  hist_feat=hist_feat,hog_feat=hog_feat)# Group cars and notcars images in a single arrayX = np.vstack((car_features,notcar_features)).astype(np.float64)# Define the labels vectory = np.hstack((np.ones(len(car_features)),np.zeros(len(notcar_features))))#Normalize data:fit a per-column scalerX_scaler = StandardScaler().fit(X)
scaled_X = X_scaler.transform(X)#Split up data into randomized training and test sets(shuffe included)X_train,X_test,y_train,y_test = train_test_split(scaled_X,y,test_size=0.2,random_state=SEED)

print('Using:',orient,'orientations',pix_per_cell,     'pixels per cell and ',cell_per_block,'cells per block')
print('Feature vector length:',len(X_train[0]))
print('Mean of example 0{}|std {}'.format(np.mean(X_train[10]),np.std(X_train[0])))123456789101112131415161718192021222324252627
/home/ora/anaconda3/envs/tensorflow/lib/python3.6/site-packages/skimage/feature/_hog.py:119: skimage_deprecation: Default value of `block_norm`==`L1` is deprecated and will be changed to `L2-Hys` in v0.15
  'be changed to `L2-Hys` in v0.15', skimage_deprecation)


Using: 12 orientations 8 pixels per cell and  2 cells per block
Feature vector length: 7248
Mean of example 0-0.05479098608161728|std 0.843610648286141112345678

Run classifier

SVC

这里我们运行线性支持向量机

svc = LinearSVC()# Check the training time for the SVCt = time.time()
svc.fit(X_train,y_train)
t2 = time.time()

print(round(t2-t,2),'Seconds to train SVC...')# Check the score of the SVCprint('Train Accuracy of SVC=',round(svc.score(X_train,y_train),4))
print('Test Accuracy of SVC=',round(svc.score(X_test,y_test),4))# Check the prediction time for a single samplet = time.time()
n_predict = 10print('My SVC predicts:',svc.predict(X_test[0:n_predict]))
print('For these',n_predict,'labels:',y_test[0:n_predict])
t2 = time.time()
print(round(t2-t,5),'Seconds to predict',n_predict,'labels with SVC')1234567891011121314151617
22.9 Seconds to train SVC...
Train Accuracy of SVC= 1.0
Test Accuracy of SVC= 0.9818
My SVC predicts: [0. 1. 0. 0. 0. 1. 0. 0. 1. 0.]
For these 10 labels: [0. 1. 0. 0. 1. 1. 0. 0. 1. 0.]
0.00101 Seconds to predict 10 labels with SVC1234567

Logistic Regression Classifier

接下来我们运行逻辑回归分类器

from sklearn.linear_model import LogisticRegression
lrc = LogisticRegression(max_iter=10)
t = time.time()
lrc.fit(X_train,y_train)
t2 = time.time()
print(round(t2-t,2),'Seconds to train LRC...')# Check the score of the LRCprint('Train Accuracy of LRC=',round(lrc.score(X_train,y_train),4))
print('Test Accuracy of LRC=',round(lrc.score(X_test,y_test),4))# Check the prediction time for a single samplet = time.time()
n_predict = 10print('My LRC predicts:',lrc.predict(X_test[0:n_predict]))
print('For these',n_predict,'labels:',y_test[0:n_predict])
t2 = time.time()
print(round(t2-t,5),'Seconds to predict',n_predict,'labels with LRC')12345678910111213141516
27.1 Seconds to train LRC...
Train Accuracy of LRC= 1.0
Test Accuracy of LRC= 0.9852
My LRC predicts: [0. 1. 0. 0. 0. 1. 0. 0. 1. 0.]
For these 10 labels: [0. 1. 0. 0. 1. 1. 0. 0. 1. 0.]
0.00169 Seconds to predict 10 labels with LRC1234567

Multi-Layer Perceptron Classifer

最后我们来运行多层感知分类器

from sklearn.neural_network import MLPClassifier
mlp = MLPClassifier(random_state=SEED)
t = time.time()
mlp.fit(X_train,y_train)
t2 = time.time()
print(round(t2-t,2),'Seconds to train MLP...')# Check the score of the LRCprint('Train Accuracy of MLP=',round(mlp.score(X_train,y_train),4))
print('Test Accuracy of MLP=',round(mlp.score(X_test,y_test),4))# Check the prediction time for a single samplet = time.time()
n_predict = 10print('My MLP predicts:',mlp.predict(X_test[0:n_predict]))
print('For these',n_predict,'labels:',y_test[0:n_predict])
t2 = time.time()
print(round(t2-t,5),'Seconds to predict',n_predict,'labels with LRC')12345678910111213141516
21.28 Seconds to train MLP...
Train Accuracy of MLP= 1.0
Test Accuracy of MLP= 0.9953
My MLP predicts: [0. 1. 0. 0. 0. 1. 0. 0. 1. 0.]
For these 10 labels: [0. 1. 0. 0. 1. 1. 0. 0. 1. 0.]
0.00294 Seconds to predict 10 labels with LRC1234567

Save the model

保存模型

model_combine = 'model.p'try:    with open(model_combine,'wb') as pfile:
        pickle.dump(
        {            'X_dataset':X,            'y_dataset':y,            'svc':svc,            'lrc':lrc,            'mlp':mlp,            'X_scaler':X_scaler,            'color_space':color_space,            'spatial_size':spatial_size,            'hist_bins':hist_bins,            'orient':orient,            'pix_per_cell':pix_per_cell,            'cell_per_block':cell_per_block,            'hog_channel':hog_channel,            'spatial_feat':spatial_feat,            'hist_feat':hist_feat,            'hog_feat':hog_feat
        },
            pfile,pickle.HIGHEST_PROTOCOL)except Exception as e:
    print('Unable to save data to',model,':',e)    raise1234567891011121314151617181920212223242526

Vechicle Detection and Tracking

import globimport matplotlib.image as mpimgimport numpy as npfrom skimage.feature import hogimport cv2import matplotlib.pyplot as pltfrom sklearn.preprocessing import StandardScalerfrom scipy.ndimage.measurements import labelimport time
from sklearn.externals import joblibimport picklefrom moviepy.editor import VideoFileClipfrom IPython.display import HTML# from skimage import measureSEED = 2018%matplotlib inline12345678910111213141516

Feature extractor functions

def get_hog_features(img,orient,pix_per_cell,cell_per_block,vis=False,feature_vector=True):
    '''
    function:Extract HOG image and HOG features of a given image
    orient: number of bins for the orientation
    pix_per_cell: size of a cell
    cell_per_block: nber of cells per block
    vis(Boolean) :visualize the HOG image
    feature_vec(Boolean):return the features as a feature vector
    By default,the function uses transform_sqrt(apply power law compression to normalize the image before processing)
    '''
    if vis == True:
        features,hog_image = hog(img,orientations=orient,
                                pixels_per_cell=(pix_per_cell,pix_per_cell),
                                cells_per_block = (cell_per_block,cell_per_block),
                                transform_sqrt=True,
                                visualise=vis,feature_vector=feature_vector)        return features,hog_image    else:
        features = hog(img,orientations=orient,
                       pixels_per_cell=(pix_per_cell,pix_per_cell),
                      cells_per_block=(cell_per_block,cell_per_block),
                      transform_sqrt=True,
                      visualise=vis,feature_vector=feature_vector)        return featuresdef bin_spatial(img,size=(32,32)):
    '''
    Binned Color Feature
    img:original image
    size:target size of the image
    output:feature vector
    '''
    features = cv2.resize(img,size).ravel()    return featuresdef color_hist(img,nbins=32,bins_range=(0,256)):
    '''
    Color histogram features for each channel of the original image
    img: original image
    nbins: number of bins of the histogram
    output:concatenate feature vector
    '''
    channel1_hist = np.histogram(img[:,:,0],bins=nbins,range=bins_range)
    channel2_hist = np.histogram(img[:,:,1],bins=nbins,range=bins_range)
    channel3_hist = np.histogram(img[:,:,2],bins=nbins,range=bins_range)    #Concatenate the histograms into a sigle feature vector
    hist_features = np.concatenate((channel1_hist[0],channel2_hist[0],channel3_hist[0]))    # Return the individual histograms into a single feature vector
    return hist_featuresdef color_cvt(img,cspace):
    '''
    image conversion to different color space
    cspace avaliable:'HSV','LUV','YUV','YCrCb'
    '''
    if cspace in ['HSV','LUV','HLS','YUV','YCrCb']:        return cv2.cvtColor(img,eval('cv2.COLOR_RGB2'+cspace))    else:        return np.copy(img)1234567891011121314151617181920212223242526272829303132333435363738394041424344454647484950515253545556575859

Load SVC Classifier and Feature settings

这里选用svc分类器

data_file = 'model.p'with open(data_file,mode='rb') as f:
    data = pickle.load(f)

svc = data['svc']
X_scaler = data['X_scaler']
color_space = data['color_space']
spatial_size = data['spatial_size']
hist_bins = data['hist_bins']
orient = data['orient']
pix_per_cell = data['pix_per_cell']
cell_per_block = data['cell_per_block']
hog_channel = data['hog_channel']
spatial_feat = data['spatial_feat']
hist_feat = data['hist_feat']
hog_feat = data['hog_feat']12345678910111213141516

Smoothing

# 此处列表的更新,可以使用固定长的队列存储,这里是固定更新的class Buffer():
    def __init__(self,buffer_sz):
        self.buffer_sz = buffer_sz
        self.hot_windows = []
        self.heat_mframe = []
        self.hotwindows_mframe = []
        self.nwindow_mframe = []    def add_hotwindows(self,new_val):
        self.hot_windows.append(new_val)    def update_hotwindows_historic(self,new_val):
        self.hotwindows_mframe.extend(new_val)
        self.nwindow_mframe.append(len(new_val))        if len(self.nwindow_mframe) > self.buffer_sz:
            self.hotwindows_mframe = self.hotwindows_mframe[self.nwindow_mframe[0]:]
            self.nwindow_mframe = self.nwindow_mframe[-self.buffer_sz:]    def update_heat_historic(self,new_heat):
        self.heat_mframe.append(new_heat)        if len(self.heat_mframe) > self.buffer_sz:
            self.heat_mframe = self.heat_mframe[-self.buffer_sz:]
buffer = Buffer(buffer_sz=40)1234567891011121314151617181920212223

接下来实现一个函数来提取特征及作出预测

def find_cars(img,ystart,ystop,cells_per_step,scale,svc,X_scale,cspace,orient,pix_per_cell,
             cell_per_block,spatial_feat,spatial_size,hist_feat,hist_bins):
    '''
    uses a single HOG feature extraction on the entire image
    sliding_window = {'scale':[0.6, 0.8, 1.2, 1.6, 2, 2.2],
          'ystart':[400, 400, 400, 350, 350, 350],
          'ystop': [520, 520, 620, 620, 656, 656],
          'cells_per_step': [3, 3, 1, 1, 1, 1]}
    img.shape: (720,1280,3)
    '''
    draw_img = np.copy(img)    #Normalize pixel intensity
    img = img.astype(np.float32)/255
    #确定搜索车辆的区域
    img_tosearch = img[ystart:ystop,700::]    #print(img_tosearch.shape)
    ctrans_tosearch = color_cvt(img_tosearch,cspace=cspace)    if scale!=1:
        imshape = ctrans_tosearch.shape
        ctrans_tosearch = cv2.resize(ctrans_tosearch,(np.int(imshape[1]/scale),np.int(imshape[0]/scale)))
    ch1 = ctrans_tosearch[:,:,0]
    ch2 = ctrans_tosearch[:,:,1]
    ch3 = ctrans_tosearch[:,:,2]    #print(ch1.shape[1])
    # Define blocks and steps as above(//地板除法,取整数)
    nxblocks = (ch1.shape[1]//(pix_per_cell))-1
    nyblocks = (ch1.shape[0]//(pix_per_cell))-1
    #nfeat_per_block = orient*cell_per_block**2
    #64 was the original sampling rate with 8 cells and 8 pix per cell
    window = 64
    nblocks_per_window = (window//(pix_per_cell))-1
    #cells_per_step = 2 instead of overlap ,define how many cells to step cells=>block
    nxsteps = (nxblocks-nblocks_per_window)//cells_per_step
    nysteps = (nyblocks-nblocks_per_window)//cells_per_step    #print('nxsteps:{},nysteps:{}'.format(nxsteps,nysteps))
    # Compute individual channel HOG features for the entire image
    hog1 = get_hog_features(ch1,orient,pix_per_cell,cell_per_block,feature_vector=False)
    hog2 = get_hog_features(ch2,orient,pix_per_cell,cell_per_block,feature_vector=False)
    hog3 = get_hog_features(ch3,orient,pix_per_cell,cell_per_block,feature_vector=False)
    current_hot_windows = []    for xb in range(nxsteps):        for yb in range(nysteps):
            ypos = yb*cells_per_step
            xpos = xb*cells_per_step            #Extract HOG for this patch
            hog_feat1 = hog1[ypos:ypos+nblocks_per_window,xpos:xpos+nblocks_per_window].ravel()
            hog_feat2 = hog2[ypos:ypos+nblocks_per_window,xpos:xpos+nblocks_per_window].ravel()
            hog_feat3 = hog3[ypos:ypos+nblocks_per_window,xpos:xpos+nblocks_per_window].ravel()
            hog_features = np.hstack((hog_feat1,hog_feat2,hog_feat3))

            xleft = xpos*pix_per_cell
            ytop = ypos*pix_per_cell            #Extract the image patch
            subimg = cv2.resize(ctrans_tosearch[ytop:ytop+window,xleft:xleft+window],(64,64))            #Get color features
            if spatial_feat == True:
                spatial_features = bin_spatial(subimg,size=spatial_size)            if hist_feat == True:
                hist_features = color_hist(subimg,nbins=hist_bins)            #Scale features and make a prediction
            if (spatial_feat== True) and (hist_feat==True) and (hog_feat==True):
                test_feature = X_scaler.transform(np.hstack((spatial_features,hist_features,
                                                             hog_features)).reshape(1,-1))            elif (spatial_feat==True) and (hist_feat==False) and (hog_feat==True):
                test_features = X_scaler.transform(np.hstack((spatial_features,hog_features)).reshape(1,-1))

            test_prediction = svc.predict(test_features)            if test_prediction ==1.:                #这里scale系数需要还原
                xbox_left = np.int(xleft*scale) + 700
                ytop_draw = np.int(ytop*scale)+ystart
                win_draw = np.int(window*scale)
                buffer.add_hotwindows(((xbox_left,ytop_draw),(xbox_left+win_draw,ytop_draw+win_draw)))
                cv2.rectangle(draw_img,(xbox_left,ytop_draw),(xbox_left+win_draw,ytop_draw+win_draw),
                             (0,0,255),6)    return draw_img1234567891011121314151617181920212223242526272829303132333435363738394041424344454647484950515253545556575859606162636465666768697071727374757677

Filters

前面代码中,我们将检测到汽车的位置存储在hot_windows中。通过hot_windows我们来画出热点图,并在热点图上应用阈值检测来清除错误检测的坐标

def add_heat(heatmap,bbox_list):
    '''
    iterate through list of positive sliding windows (bbox_list) and add heat

    '''
    for box in bbox_list:        # Add +=1 for all pixels inside each bbox
        # Assuming each 'box' takes the form ((x1,y1),(x2,y2))
        heatmap[box[0][1]:box[1][1],box[0][0]:box[1][0]]+=1
    # return updated heatmap
    return heatmap# Iterate throughdef apply_threshold(heatmap,threshold):
    '''
    Appy threshold on heatmap
    return thresholded heatmap where all values below threshold are set to 0
    '''
    # Zero out pixles below the threshold
    heatmap[heatmap<=threshold] = 0
    # return thresholded map
    return heatmapdef draw_labeled_bboxes(img,labels):
    #Iterate through all detected cars
    for car_number in range(1,labels[1]+1):        #find pixels with each car_number label value
        nonzero = (labels[0]==car_number).nonzero()        # Identify x and y values of those pixels
        nonezeroy = np.array(nonzero[0])
        nonezerox = np.array(nonzero[1])        # Define a bounding box based on min/max x and y

        bbox = ((np.min(nonezerox),np.min(nonezeroy)),(np.max(nonezerox),np.max(nonezeroy)))        # Check car validtion ==> too small then ignore
        if(abs(bbox[0][0]-bbox[1][0])>50 and abs(bbox[0][1]-bbox[1][1])>50):#too small rect are ignore
            cv2.rectangle(img,bbox[0],bbox[1],(0,255,0),6)    # return image
    return img1234567891011121314151617181920212223242526272829303132333435363738
sliding_window = {'scale':[0.6, 0.8, 1.2, 1.6, 2, 2.2],
          'ystart':[400, 400, 400, 350, 350, 350],
          'ystop': [520, 520, 620, 620, 656, 656],
          'cells_per_step': [3, 3, 1, 1, 1, 1]}1234
def pipline_test(image):
    '''
    takes an image and returns a image

    '''
    #initialize for heatmap of current frame
    heat_sframe = np.zeros_like(image[:,:,0]).astype(np.float)    #initialize hot_windows recoder
    buffer.hot_windows = []
    threshold = 50

    for idx ,scale in enumerate(sliding_window['scale']):
        ystart = sliding_window['ystart'][idx]
        ystop = sliding_window['ystop'][idx]
        cells_per_step = sliding_window['cells_per_step'][idx]
        out_img = find_cars(image,ystart,ystop,cells_per_step,scale,svc,X_scaler,color_space,orient,
                           pix_per_cell,cell_per_block,spatial_feat,spatial_size,hist_feat,hist_bins)

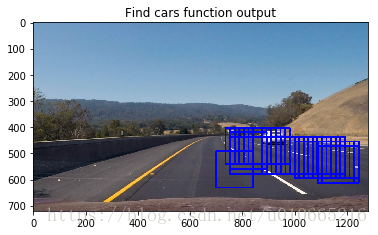

    plt.imshow(out_img)
    plt.title('Find cars function output')
    plt.show()    #Add heat to each box in box list
    #print(buffer.hot_windows)
    heat_sframe = add_heat(heat_sframe,buffer.hot_windows)

    heat_sframe = apply_threshold(heat_sframe,threshold)

    buffer.update_heat_historic(heat_sframe)

    smooth_heat = np.zeros_like(image[:,:,0]).astype(np.float)    for h in buffer.heat_mframe:
        smooth_heat +=h

    smooth_heat = smooth_heat/len(buffer.heat_mframe)
    heatmap = np.clip(smooth_heat,0,255)

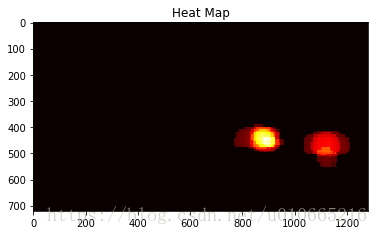

    plt.imshow(heatmap,cmap='hot')
    plt.title('Heat Map')
    plt.show()

    labels = label(heatmap)
    new = draw_labeled_bboxes(np.copy(image),labels)

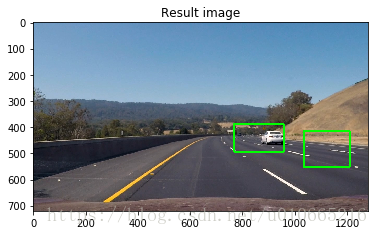

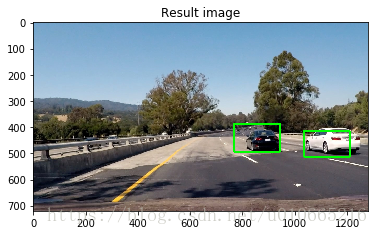

    plt.imshow(new)
    plt.title('Result image')
    plt.show()    return new# Read test imagetest_data = glob.glob('test_images/*.jpg')for file in test_data:
    image = mpimg.imread(file)
    new_image = pipline_test(image)123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

png

#接下来实现 vehicle detector pipelinedef pipline(image):
    '''
    takes an image and returns a image

    '''
    #initialize for heatmap of current frame
    heat_sframe = np.zeros_like(image[:,:,0]).astype(np.float)    #initialize hot_windows recoder
    buffer.hot_windows = []
    threshold = 50

    for idx ,scale in enumerate(sliding_window['scale']):
        ystart = sliding_window['ystart'][idx]
        ystop = sliding_window['ystop'][idx]
        cells_per_step = sliding_window['cells_per_step'][idx]
        out_img = find_cars(image,ystart,ystop,cells_per_step,scale,svc,X_scaler,color_space,orient,
                           pix_per_cell,cell_per_block,spatial_feat,spatial_size,hist_feat,hist_bins)

    heat_sframe = add_heat(heat_sframe,buffer.hot_windows)

    heat_sframe = apply_threshold(heat_sframe,threshold)

    buffer.update_heat_historic(heat_sframe)

    smooth_heat = np.zeros_like(image[:,:,0]).astype(np.float)    for h in buffer.heat_mframe:
        smooth_heat +=h

    smooth_heat = smooth_heat/len(buffer.heat_mframe)
    heatmap = np.clip(smooth_heat,0,255)

    labels = label(heatmap)
    new = draw_labeled_bboxes(np.copy(image),labels)    return new12345678910111213141516171819202122232425262728293031323334353637
# Run pipeline on videovideo_output = 'project_solution.mp4'clip1 = VideoFileClip('project_video.mp4')
white_clip = clip1.fl_image(pipline)
%time white_clip.write_videofile(video_output,audio=False)12345
[MoviePy] >>>> Building video project_solution.mp4
[MoviePy] Writing video project_solution.mp4


100%|█████████▉| 1260/1261 [12:31<00:00,  1.70it/s]


[MoviePy] Done.
[MoviePy] >>>> Video ready: project_solution.mp4

CPU times: user 12min 32s, sys: 2.17 s, total: 12min 34s
Wall time: 12min 32s


打开App,阅读手记
0人推荐
发表评论
随时随地看视频慕课网APP
